MID WEB
ULTRASONIC ANILOX CLEANING SYSTEM
PX-302

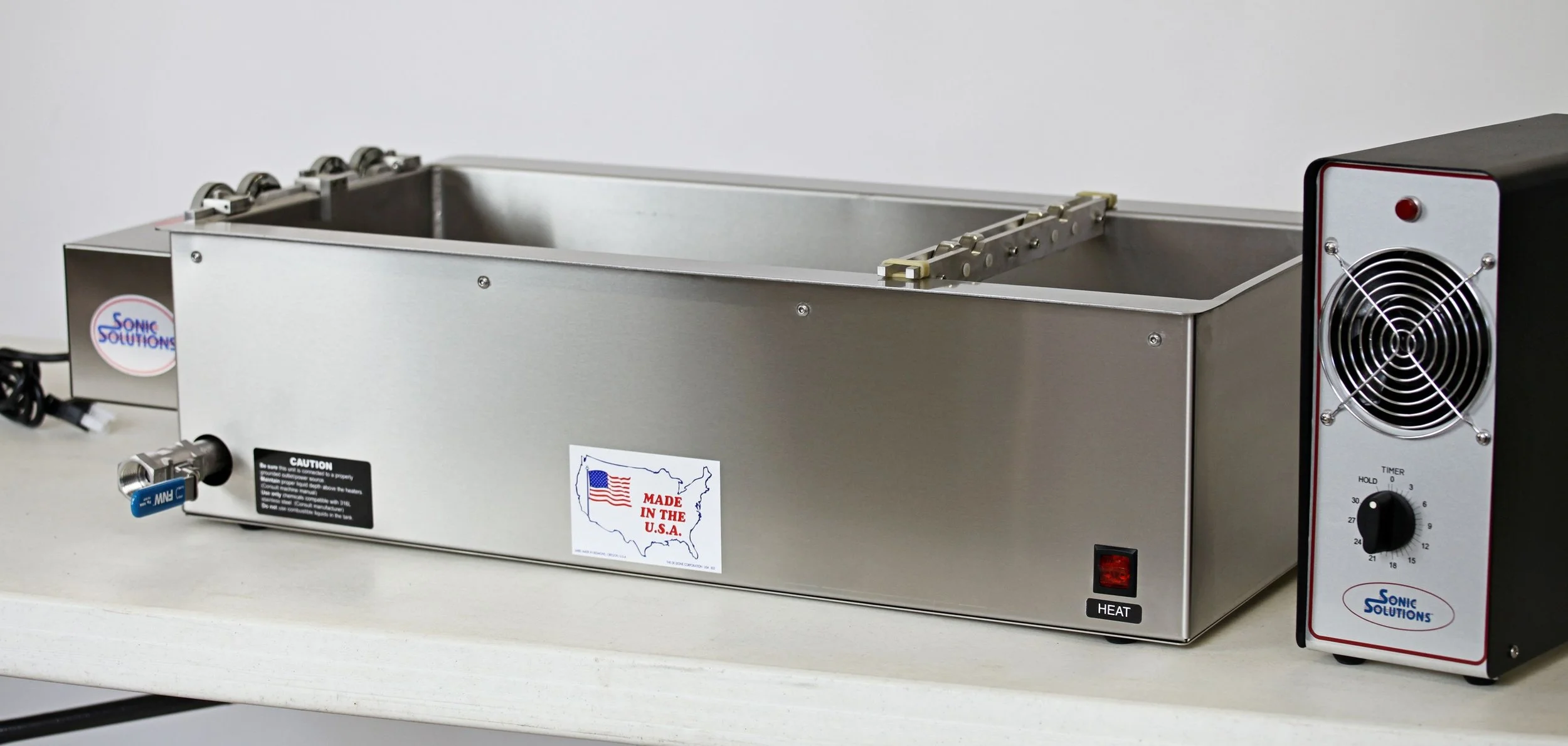

Phoenix 30” 1-Roll Ultrasonic Cleaning System
-
Cleans up to 29" (730mm) anilox rolls
Cleans up to 2 anilox rolls at one time
Designed for precision cleaning of anilox rolls and similar cylinders
-
Tank capacity: 9 gallons (34L) of cleaning solution
Tank material: 14-gauge stainless steel, 30" (760mm) long
Electrical: 120 volt, 60 Hz (240 volt also available)
Heating: Thermostat fixed heating with low-liquid protection shutoff
Power: 500 watts at 68 kHz
External ultrasonic generator with 30-minute timer
Frequency Sweep Technology
-
Removable stainless dual-motor rotating unit with special grip-belt drive
Stainless-steel dual-support slide-bar system — infinitely adjustable
Stainless-steel cover and ball-valve drain included
Compact, durable design for consistent, safe cleaning performance
-
Two free 6-gallon (46L) containers of SONIC KLEEN cleaning solution
Operator’s Manual
-
1-Year Limited Warranty
Technical support and replacement parts available
PX-421 & PX-422
Phoenix 42” 1 & 2-Roll Ultrasonic Cleaning System
-
Cleans up to 41" (1,041mm) anilox rolls
Cleans 1 to 2 rolls at one time
Designed for precision cleaning of anilox rolls and similar cylinders
-
Tank capacity: 11 to 12 gallons of cleaning solution
Tank material: 14-gauge stainless steel, 42" (1,067mm) long
Electrical: 120 volt, 60 Hz (240 volt also available)
Heating: Thermostat fixed heating with low-liquid protection shutoff
Power: 1,000 watts at 68 kHz
External ultrasonic generator with 30-minute timer
Frequency Sweep Technology
-
Removable stainless dual-motor rotating unit with special grip-belt drive
Stainless-steel single or dual-support slide-bar system — infinitely adjustable
Stainless-steel cover and ball-valve drain included
Compact, durable design for consistent, safe cleaning performance
-
Two free 6-gallon (46L) containers of SONIC KLEEN cleaning solution
Operator’s Manual
-
1-Year Limited Warranty
Technical support and replacement parts available
PX-521 & PX-522
Phoenix 52” 1 & 2 Roll Ultrasonic Cleaning System
-
Cleans up to 50" (1,270mm) anilox rolls
Cleans 1 to 2 rolls at one time
Designed for precision cleaning of anilox rolls and similar cylinders
-
Tank capacity: 17 gallons (60L) of cleaning solution
Tank material: 14-gauge stainless steel, 52" (1,300mm) long
Electrical: 120 volt, 60 Hz (240 volt also available)
Heating: Thermostat fixed heating with low-liquid protection shutoff
Power: 1,000 watts at 68 kHz
External ultrasonic generator with 30-minute timer
Frequency Sweep Technology
-
Removable stainless dual-motor rotating unit with special grip-belt drive
Stainless steel single or dual-support slide-bar system — infinitely adjustable
Stainless-steel cover and ball-valve drain included
Compact, durable design for consistent, safe cleaning performance
-
Two free 6-gallon (46L) containers of SONIC KLEEN cleaning solution
Operator’s Manual
-
1-Year Limited Warranty
Technical support and replacement parts available
PX-Custom
Custom Configurations Available
