NARROW WEB
ULTRASONIC ANILOX CLEANING MACHINE
PX-202
Phoenix 19” 2-Roll Ultrasonic Cleaning Tank
-
Cleans up to 19" (480mm) anilox rolls
Cleans up to 2 anilox rolls at one time
Designed for precision cleaning of anilox rolls and similar cylinders
-
Tank capacity: 6 gallons (23L) of cleaning solution
Tank material: 14-gauge stainless steel, 19 ¾" (500mm) long
Electrical: 120 volt, 60 Hz (240 volt also available)
Heating: Thermostat fixed heating with low-liquid protection shutoff
Power: 500 watts at 68 kHz
External ultrasonic generator with 30-minute timer
Frequency Sweep Technology
-
Removable stainless dual-motor rotating unit with special grip-belt drive
Stainless-steel dual-support slide-bar system — infinitely adjustable
Stainless-steel cover and ball-valve drain included
Compact, durable design for consistent, safe cleaning performance
-
One free 6-gallon (23L) container of SONIC KLEEN cleaning solution
Operator’s Manual
-
1-Year Limited Warranty
Technical support and replacement parts available

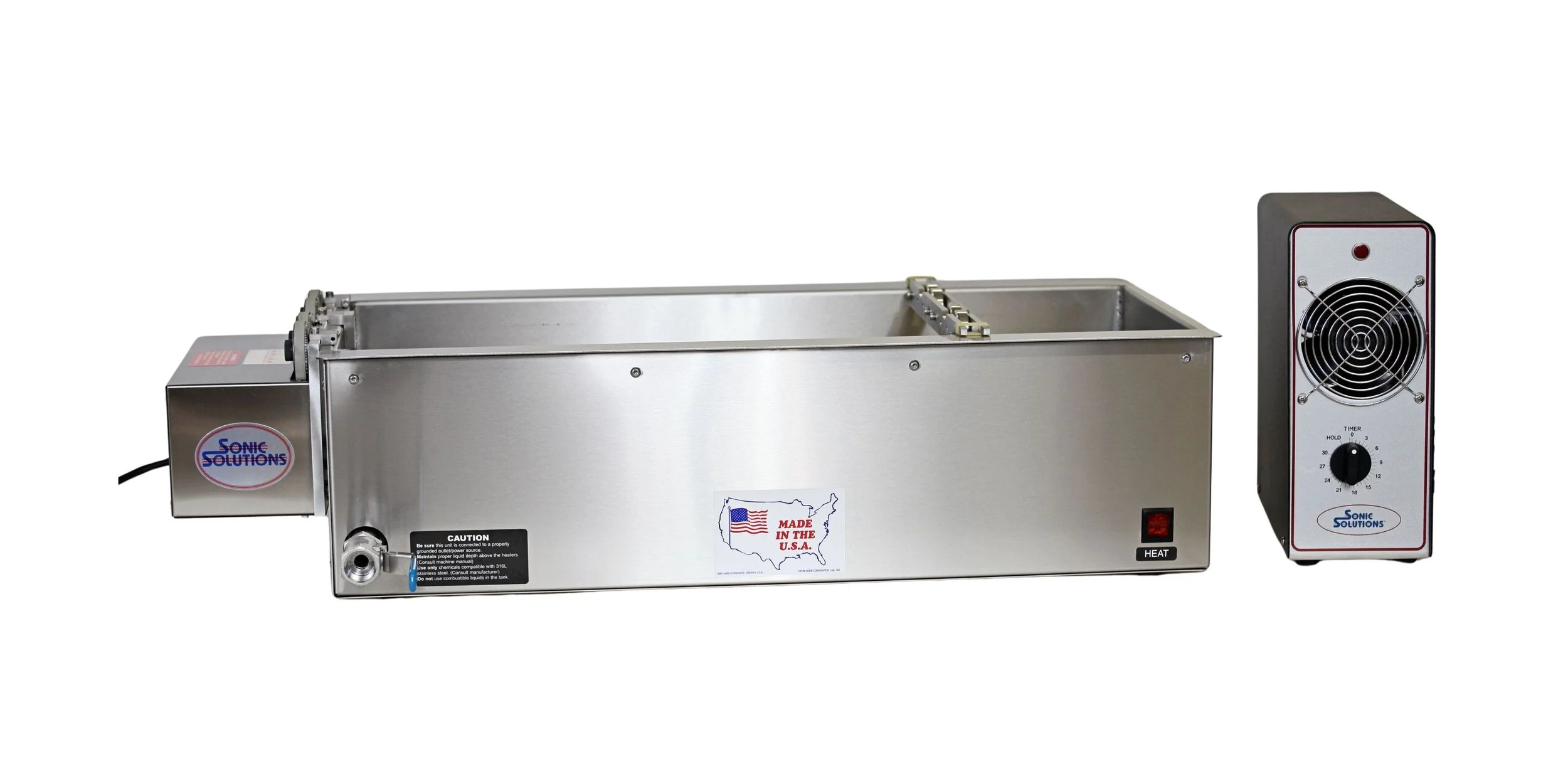

PX-302
Phoenix 29” 2-Roll Ultrasonic Cleaning Tank
-
Cleans up to 29" (730mm) anilox rolls
Cleans up to 2 anilox rolls at one time
Designed for precision cleaning of anilox rolls and similar cylinders
-
Tank capacity: 9 gallons (34L) of cleaning solution
Tank material: 14-gauge stainless steel, 30" (760mm) long
Electrical: 120 volt, 60 Hz (240 volt also available)
Heating: Thermostat fixed heating with low-liquid protection shutoff
Power: 500 watts at 68 kHz
External ultrasonic generator with 30-minute timer
Frequency Sweep Technology
-
Removable stainless dual-motor rotating unit with special grip-belt drive
Stainless-steel dual-support slide-bar system — infinitely adjustable
Stainless-steel cover and ball-valve drain included
Compact, durable design for consistent, safe cleaning performance
-
Two free 6-gallon (46L) containers of SONIC KLEEN cleaning solution
Operator’s Manual
-
1-Year Limited Warranty
Technical support and replacement parts available
PX-Custom
Custom Configurations Available
