ULTRASONIC ANILOX SLEEVE CLEANERS

Phoenix 52” Ultrasonic Cleaning System

- Cleans up to 50" (1,270mm) anilox rolls or sleeves
- Cleans 1 to 2 rolls at one time
- Designed for precision cleaning of anilox rolls and similar cylinders
- Tank capacity: 17 gallons (60L) of cleaning solution
- Electrical: 120 volt, 60 Hz (240 volt also available)
- Tank material: 14-gauge stainless steel, 52" (,1300mm) long
- Heating: Thermostat fixed heating with low-liquid protection shutoff
- Power: 1000 watts at 68 kHz
- External ultrasonic generator with 30-minute timer
- Frequency Sweep Technology
- Removable stainless single or dual-motor rotating unit with special grip-belt drive
- Stainless-steel single or dual-support slide-bar system — infinitely adjustable
- Stainless-steel cover and ball-valve drain included
- Compact, durable design for consistent, safe cleaning performance
- One free 6-gallon (23L) container of SONIC KLEEN cleaning solution
- Operator’s Manual
- 1-Year Limited Warranty
- Technical support and replacement parts available

Phoenix 62” Ultrasonic Cleaning System

- Cleans up to 60" (1,500mm) rolls
- Cleans 1 to 2 rolls at one time
- Designed for precision cleaning of anilox rolls and similar cylinders
- Tank capacity: 16 gallons (60L) of cleaning solution
- Tank material: 14-gauge stainless steel, 62" (1,530mm) long
- Electrical: 120 volt, 60 Hz (240 volt also available)
- Heating: Thermostat fixed heating with low-liquid protection shutoff
- Power: 1,500 watts at 68 kHz
- External ultrasonic generator with 30-minute timer
- Frequency Sweep Technology
- Removable stainless single or dual-motor rotating unit with special grip-belt drive
- Stainless-steel single or dual-support slide-bar system — infinitely adjustable
- Stainless steel cover and ball-valve drain included
- Compact, durable design for consistent, safe cleaning performance
- Two free 6-gallon (46L) containers of SONIC KLEEN cleaning solution
- Operator’s Manual
- 1-Year Limited Warranty
- Technical support and replacement parts available

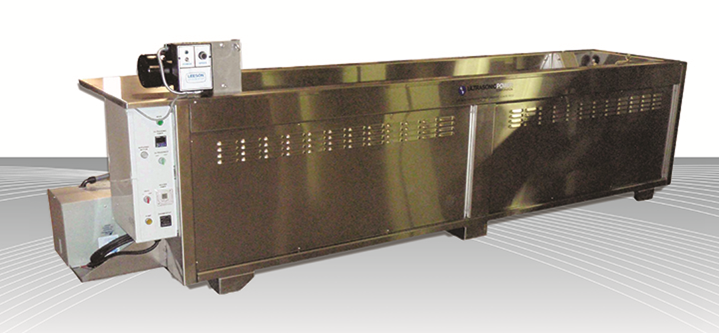

Phoenix 72” Ultrasonic Cleaning System

- Custom built to your anilox rolls’ specifications (up to 10 feet / 3 meters)
- Designed to clean 1 to 2 rolls at a time
- Engineered for precision cleaning of large or specialty anilox rolls
- Tank material: 12-gauge stainless steel
- Electrical: 117V and 230V equipment powered by 50 kHz or 60 kHz generator
- Heating: Integrated heater with temperature control
- Power: Delivers ultrasonic power at 68 kHz for a more thorough, gentle cleaning
- External ultrasonic generator with timer
- Frequency Sweep Technology
- Integrated rotating mechanism with fixed-rate rotation
- Removable supports with heavy-duty urethane support rollers
- Stainless-steel cover and ball-valve drain included
- Customizable design to fit unique roll lengths and diameters
- Operator’s Manual
- 1-Year Limited Warranty
- Technical support and replacement parts available

Custom Configurations Available

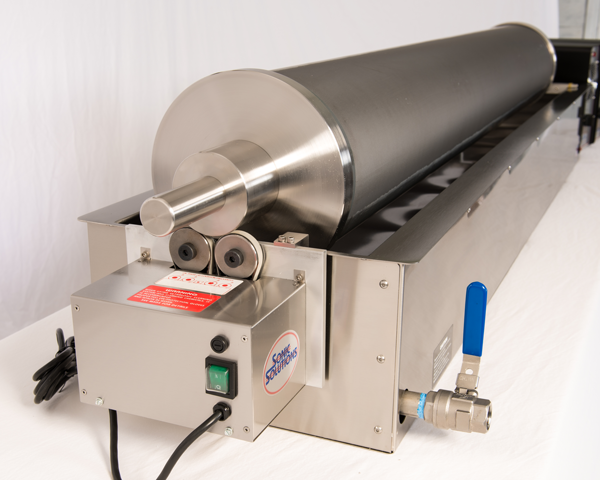

Sleeve Adapters

Custom designed to your sleeves' specifications.
Designed to work on our anilox roll cleaning systems.
Made of all stainless-steel construction.
Designed with caps on sleeve ends secured by journals that allow the rolls to be supported and rotate on the cleaning system.
